The light – the decisive growth factor

With the factor light, the RUMED® Test and Simulation Equipment offers the third and decisive module for simulation of environmental conditions. Make your choice from the wide range of lighting
possibilities to find the suitable solution for your application.

Light – different lighting levels
RUMED® Light Thermostats are applied very often in plant research or for seed tests, but
are also playing a major role, wherever photo stability tests are required. The RUMED® Precision Equipment can be equipped with the most different light spectra and luminous intensities. From the natural spectrum for reproducible environmental and growth conditions in plant research, over monochromatic light for systematic simulation, up to special UV spectra for accelerated ageing tests. Due to the manifold combinations, the suitable equipment variant for any requirement profile can be found.

By means of the Control2015 touch, the most complex temperature and humidity lighting profiles can be realized. Also storage conditions and radiation intensities can be recorded in conformity with FDA, as well as in accordance with GMP. Photo stability tests according to ICH Q1B become child‘s play.

The application ranges of the RUMED® Light Thermostats:

  • Plant research
  • Seed tests and seed research
  • In vitro cultivation
  • Zoology and botany
  • Photo stability tests in the fields foodstuffs, cosmetics or pharmacy
  • Packaging industry
  • Plant research: Plants need natural light for prosperity.

  • In vitro cultivation: Many plants out of one plant – under the right conditions.

  • Photo stability tests of drugs according to ICH Q1B.

  • LED Light bars: They are economical and offer more possibilities in the arrangement of the test room.

  • Much light, but not too much heat. These fluorescent lamps are thermally insulated from the test room.


Licht LED lighting in the test room

LED lighting in the test room

The vertically arranged LED light bars allow free and flexible arrangement of the test room. Appliances of the Eco-Line are equipped with 2 LED bars on the back panel of the test room, those of the Premium-Line are equipped with 2 LED bars on each side panel.

For the following appliances of the Eco-Line:

E160, E230, E400

For the following appliances of the Premium-Line:

P 350, P 530, P 850, P 1060, P 1700


Lighting in several levels

Lighting in several levels

Appliances with lighting by means of fluores­cent lamps in several levels are the best choice for plants with low growth height. They distinguish by optimum economy of space. Depending on the appliance and the desired growth height, executions with 2 or 3 illumi­­na­ted levels are available.

For the following appliances of the Eco-Line:

E160, E230, E400

For the following appliances of the Premium-Line:

P 350, P 530, P 850, P 1060, P 1700




Spectral distribution of radiation of the lighting equipment

Spectral distribution of radiation of LED
Light Flourescent LAmps

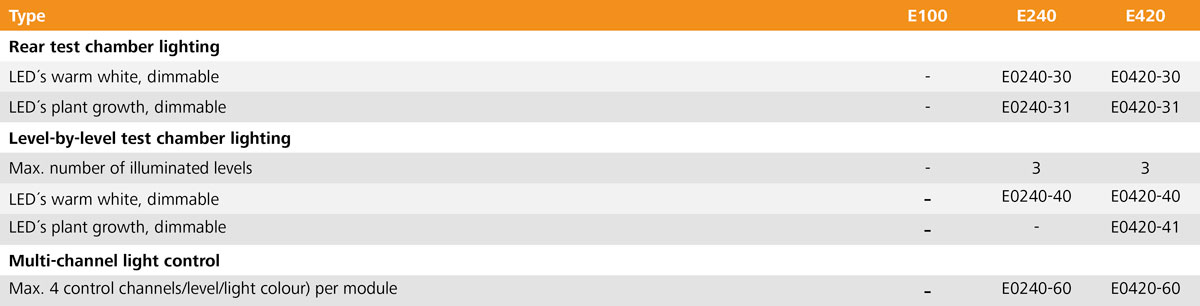

Overview Lighting Eco-Line

Overview Lighting Eco-Line
